- Place of Origin: SHANG HAI
- Brand Name: XUANSHI
- Model Number: PE

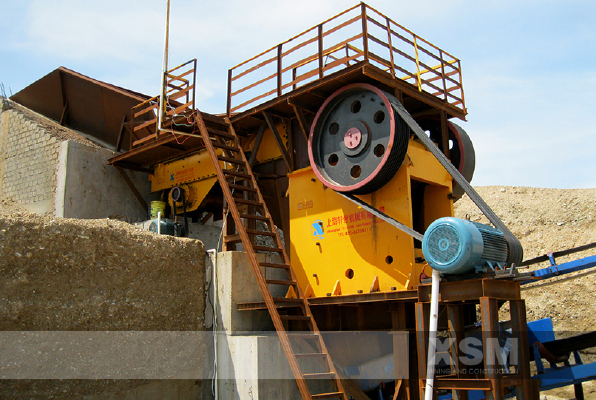

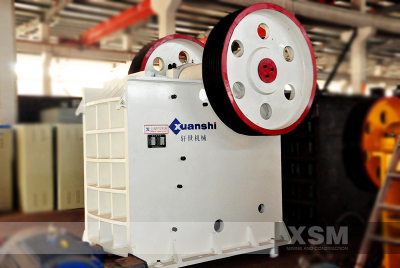

Jaw Crusher Performance and Features
1. Higher reduction ratio, increased productivity, uniform size of finished products, wider application scope.
2. Simple structure, stable performance, convenient maintenance.
3. Both feed port and discharge port are adjustable, easy to control output.
4. Energy efficiency, low production cost, long service life, eco-friendly.
- Place of Origin: SHANG HAI
- Brand Name: XUANSHI
- Model Number: PE
Model | Feeding | Max. | Adjustment | Capacity | Electric power | Outline dimension | Weight |
PE-250×400 | 250×400 | 210 | 20-80 | 5-20 | 15 | 1450×1315×1296 | 3 |
PE-400×600 | 400×600 | 350 | 40-100 | 16-65 | 30 | 1700×1732×1653 | 7.2 |
PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 55 | 2035×1921×2000 | 11 |
PE-600×900 | 600×900 | 500 | 65-140 | 90-180 | 75 | 2290×2206×2370 | 16 |
PE-750×1060 | 750×1060 | 630 | 80-160 | 110-320 | 110 | 2655×2302×3110 | 29 |
PE-900×1200 | 900×1200 | 750 | 100-200 | 200-400 | 132 | 3380×2870×3330 | 54.5 |
PE-1000×1200 | 1000×1200 | 850 | 195-260 | 220-450 | 160 | 3480×3876×3330 | 58 |
PE-1200×1500 | 1200×1500 | 1020 | 150-330 | 400-800 | 180-220 | 4200×3750×3820 | 100.9 |
PEX-250×750 | 250×750 | 210 | 25-60 | 15-30 | 22-30 | 1667×1545×1020 | 5 |
PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-50 | 30-37 | 1530×1992×1380 | 7 |
PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-60 | 37 | 1900×2192×1430 | 8 |
PEX-300×1300 | 300×1300 | 250 | 25-105 | 20-90 | 75 | 2720×1950×1600 | 11 |
