- Place of Origin: SHANG HAI
- Brand Name: XUANSHI
- Model Number: PE

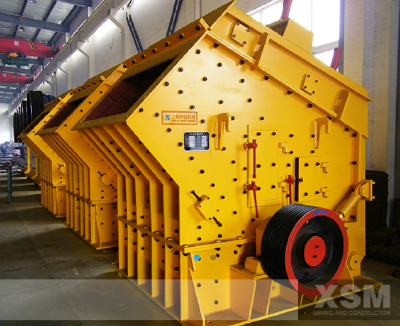

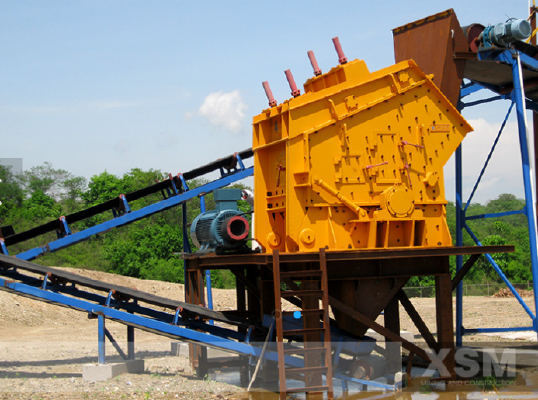

Impact Crusher Performance and Features
1.Large feed port, deep crushing chamber, high reduction ratio (20:1).
2.Non-key connection, compact structure, reliable performance, easy operation, simple maintenance.
3.High-chrome flat hammer, wear resistance, great impact force, long life.
4.The gap between the impact plate and flat hammer is easy to adjust, so the discharge size is effectively controlled.
- Place of Origin: SHANG HAI
- Brand Name: XUANSHI
- Model Number: PE
Model | Specification | Feeding Opening Size | Max. Feeding Length | Capacity | Motor power | Weight(t) | Overall Dimension |
PF1007 | Φ1000×700 | 400×730 | 300 | 30-50 | 55 | 7 | 2400×1560×2660 |
PF1010 | Φ1000×1050 | 400×1080 | 350 | 50-90 | 75 | 11 | 2532×1985×2196 |
PF1210 | Φ1250×1050 | 400×1080 | 350 | 80-130 | 110 | 14 | 2638×2037×2713 |
PF1214 | Φ1250×1400 | 400×1430 | 350 | 90-180 | 132 | 19 | 2580×2400×2810 |
PF1315 | Φ1320×1500 | 860×1520 | 350 | 160-250 | 200 | 24 | 2840×2748×2556 |
PF1320 | Φ1320×2000 | 860×2030 | 500 | 250-300 | 300 | 30 | 2900×3200×3250 |
