- Place of Origin: SHANG HAI
- Brand Name: XUANSHI
- Model Number: HGM

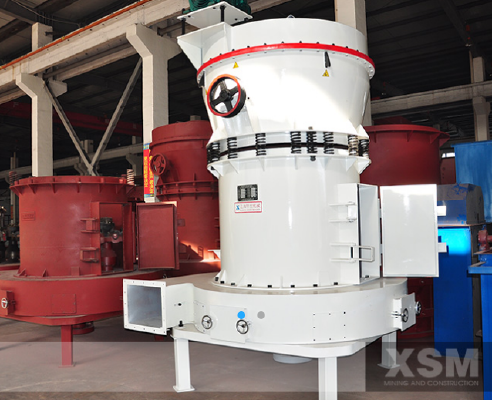

High Pressure Suspension Grinding Mill Performance and Features
1.Unique pressure device design of star rack, the production increases by 30%-80%.
2.Higher grinding force, finer grain size, wider range of applications.
3.Overlapping multistage sealing, good dedusting effect.
4.Easy-to-adjust classifier, wear-resistant parts, long replacement cycle of internal roller and ring.
- Place of Origin: SHANG HAI
- Brand Name: XUANSHI
- Model Number: HGM
Model | Roller | Ring | Max. Feeding Size | Finished Size | Motor Powder | Capacity | |||
Quantity | Diameter | Height | Inner Diameter | Height | |||||
HGM7815 | 3 | 260 | 150 | 780 | 150 | 15 | 0.613-0.033 | 18.5 | 1-3 |
HGM8314 | 3 | 270 | 140 | 830 | 140 | 20 | 0.613-0.033 | 22 | 1.2-4.6 |
HGM9517 | 4 | 310 | 170 | 950 | 170 | 25 | 0.613-0.033 | 37 | 2.1-5.6 |
HGM4121 | 5 | 410 | 210 | 1280 | 210 | 30 | 0.613-0.033 | 75 | 2.8-10.5 |
HGM4528 | 6 | 450 | 280 | 1600 | 280 | <35 | 0.613-0.033 | 132 | 5-20 |
